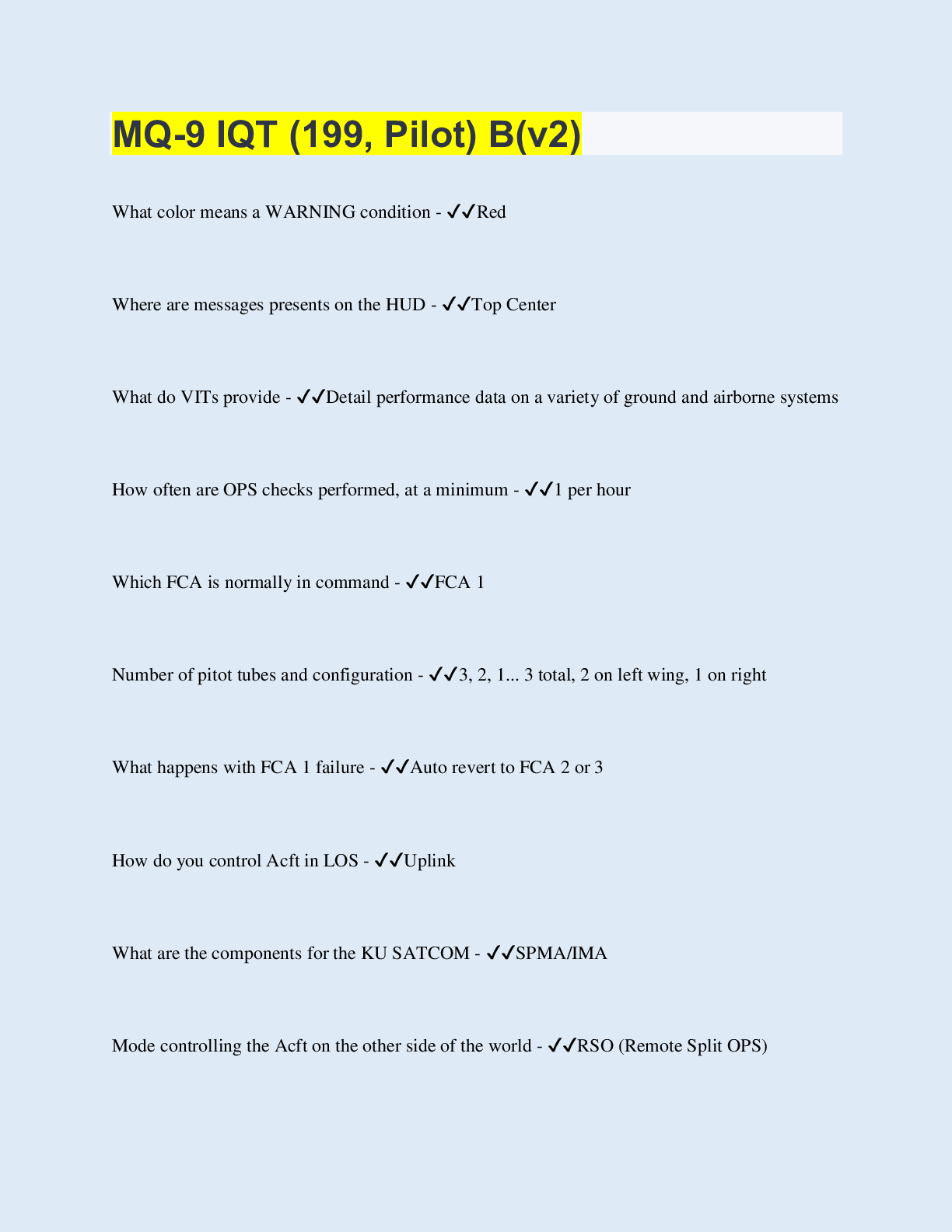

MQ-9 IQT (199, Pilot) B(v2)
What color means a WARNING condition - ✔✔Red
Where are messages presents on the HUD - ✔✔Top Center
What do VITs provide - ✔✔Detail performance data on a variety of ground and airborne syste
...
MQ-9 IQT (199, Pilot) B(v2)
What color means a WARNING condition - ✔✔Red
Where are messages presents on the HUD - ✔✔Top Center
What do VITs provide - ✔✔Detail performance data on a variety of ground and airborne systems
How often are OPS checks performed, at a minimum - ✔✔1 per hour
Which FCA is normally in command - ✔✔FCA 1
Number of pitot tubes and configuration - ✔✔3, 2, 1... 3 total, 2 on left wing, 1 on right
What happens with FCA 1 failure - ✔✔Auto revert to FCA 2 or 3
How do you control Acft in LOS - ✔✔Uplink
What are the components for the KU SATCOM - ✔✔SPMA/IMA
Mode controlling the Acft on the other side of the world - ✔✔RSO (Remote Split OPS)
When does lost link occur - ✔✔Upon loss of command link + arming time
What kind of emergency are you experiencing with frozen video and telemetry, and KU Return
Link-Lost WARNING - ✔✔Lost KU Command Link/Return link
What HUD video source is functional for KU Datalink OPS - ✔✔ENERDYNE
What turns off with Landing Config - Command - ✔✔1) Stall Protect, 2) All 3 Hold modes,
3)Preprogram (NAV) mode
How can the pilot set a new airspeed in Airspeed Hold mode - ✔✔With Joystick only (press
forward and trim depress)
What VIT can the OPERATIONAL mission be monitored on - ✔✔17
What color is the emergency mission when NOT in the edit mode - ✔✔Red
On an Operational mission, which command lets you stay on an OP mission when command link
is lost - ✔✔Lost link - OK
What is the MAX gear extended airspeed - ✔✔160 KIAS
What happens when a flight control servo fails - ✔✔Both servo AND Flight control freeze in
position
Only method for shutting down engine in flight - ✔✔Condition Lever - AFT
What is the critical RPM Range - ✔✔18-28 percent
What do you do with any Oil SYS malfunction - ✔✔Minimize maneuvering, Land ASAPossible
How many fuel pumps on MQ-9 - ✔✔2 (electrical)
What is the approximate fuel burn - ✔✔200 lbs/hr
When does the HEADER LOW FUEL illuminate - ✔✔184 lbs
How many minutes will the batteries provide power to cores systems - ✔✔60 minutes
Which BUS does Starter-Generator supply - ✔✔BUS 1
Under normal flight conditions with DC+DDBA, what indications will you see - ✔✔Both BUS 1
and BUS 2 current will show Amperage value
What should you do if you lose BOTH generators - ✔✔Reduce electrical load and RTB
What datalink type does not support ARC - 210 - ✔✔LOS
What is a KY-100 - ✔✔Encryption device
What does an IFF do - ✔✔Establish identity classification of all friendly targets within a
surveillance area
Where does Altitude reply come from - ✔✔Mode C (transpoder)
Which antenna is not effective for transmitting VDL (Rover) - ✔✔Directional-Auto
What tool do supporting units use to ID whom they are communication with - ✔✔mIRC
nickname
What is not recorded in SKYNET - ✔✔VIT Setup
Drag Configuration index - ✔✔48**
What is the ROT for rule of thumb for glide range per 1000 ft of alt. - ✔✔2 Nautical Miles
What is Zeus NOT used for - ✔✔mIRC interface tool..... nor CED**
Which of the following is true when loading a user profile in Zeus - ✔✔Open by selecting the
"system" option from menu bar
Which Zeus tool displays tracks in a vertical view (vertical deconflictor) - ✔✔Track graph
What light spectrum does the LLTV fall under - ✔✔Near-IR
Which camera requires no visible light - ✔✔IR
IR can be fused with which other sensors - ✔✔DTV/LLTV
Which image function handles IR Bloom effects - ✔✔Auto IRIS
Which process compares adjacent pixels to get rid of dead pixels and optimize IR picture -
✔✔NUC (Non-uniform correction)
In high humidity, what is the best way to increase picture/image quality - ✔✔Decrease SLANT
range
What should the sensor operator do when the target being tracked is masked - ✔✔Zoom out and
move to most probable point
What is the pilots first action in NADIR avoidance - ✔✔Bank away from the target
Main visual difference between artillery and AAA - ✔✔# of gun barrels
What is a reasonable certainty that the object of attack is a target in accordance with (IAW) the
rules of engagement (ROE) - ✔✔PID (positive ID)
What is combat ID used for - ✔✔Employment/Engagement decision
What is the minimum recommended rate gain for prosecuting mobile targets - ✔✔40
What is recommended for acft holding then following a moving target - ✔✔wheel
In most cases, how can you mitigate the impacts of terrain based obscurations - ✔✔Increase
depression angle
