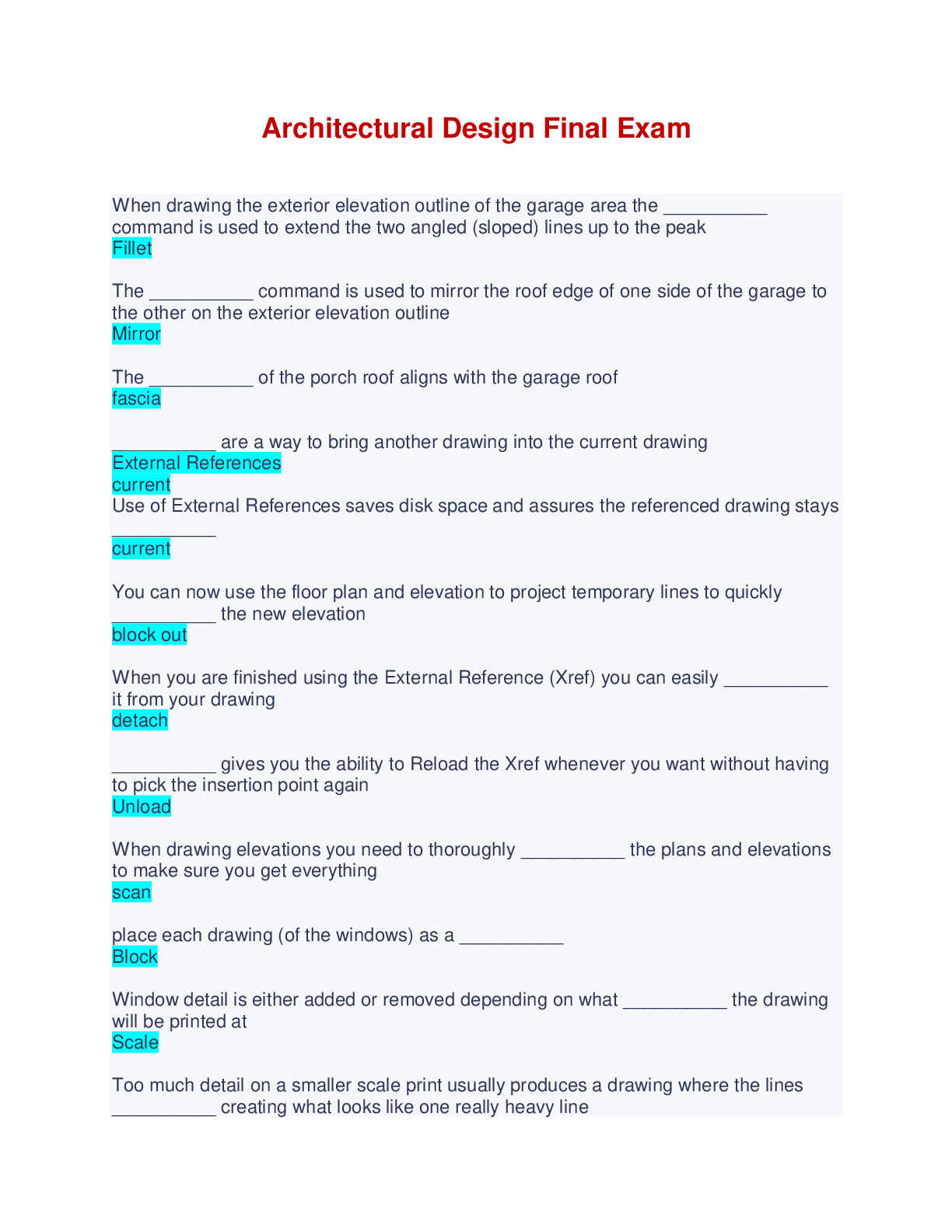

Architectural Design Final Exam - Questions with correct Answers When drawing the exterior elevation outline of the garage area the __________ command is used to extend the two angled (sloped) lines ... up to the peak Fillet The __________ command is used to mirror the roof edge of one side of the garage to the other on the exterior elevation outline Mirror The __________ of the porch roof aligns with the garage roof fascia __________ are a way to bring another drawing into the current drawing External References current Use of External References saves disk space and assures the referenced drawing stays __________ current You can now use the floor plan and elevation to project temporary lines to quickly __________ the new elevation block out When you are finished using the External Reference (Xref) you can easily __________ it from your drawing detach __________ gives you the ability to Reload the Xref whenever you want without having to pick the insertion point again Unload When drawing elevations you need to thoroughly __________ the plans and elevations to make sure you get everything scan place each drawing (of the windows) as a __________ Block Window detail is either added or removed depending on what __________ the drawing will be printed at Scale Too much detail on a smaller scale print usually produces a drawing where the lines __________ creating what looks like one really heavy line run together Once a Block (an external drawing in this case) has been inserted into your drawing you can __________ it around to ad [Show More]
